Just Plug & Play -
No expensive motor controller needed -
800 Watt peak electric motor.
Very powerful for it's size.
Can be used for powering karts
Can also be used for making Electricity (needs doide)
and changing a battery. Great for wind or hydro.
For wind or hydro power
we recommend only our 110 or 208 volt models.
For go karts, mini bikes
and cycles we recommend our 12, 24 and 48 volt
models that correspond to your battery bank voltage.
We also sell a 90 volt DC
version great for DC water pumps and hydraulic motors
All motors are rated a 75%
duty cycle at their 1 hp rating
12mm shaft diameter.
Motor length 3.5"
diameter / 6" long
7.5" over all length including shaft
800W peak - Peak Amps is Watts divided by volts. W ÷ V
2mm shaft with 1.75" pitch threads with flat slot at shaft
tip. THIS IS NOT A 3/4" LONG SHAFT!
Shaft is 1.5" long with 3/4" long threaded end (12mm/1.75
pitch thread by 3/4" long)

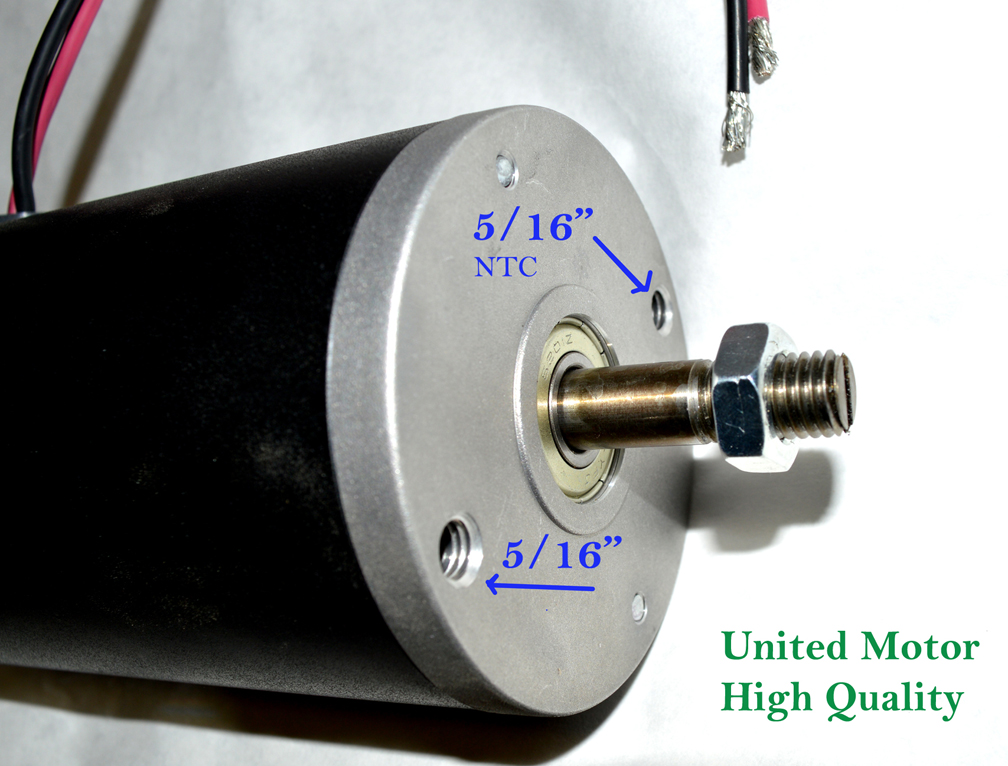

Two 5/16" extra large mounting holes on the front of the
5/16" NCT mounting holes are 2.874" from center to
3000rpm @ rated vooltage / continuous duty at 75% of peak wattage.

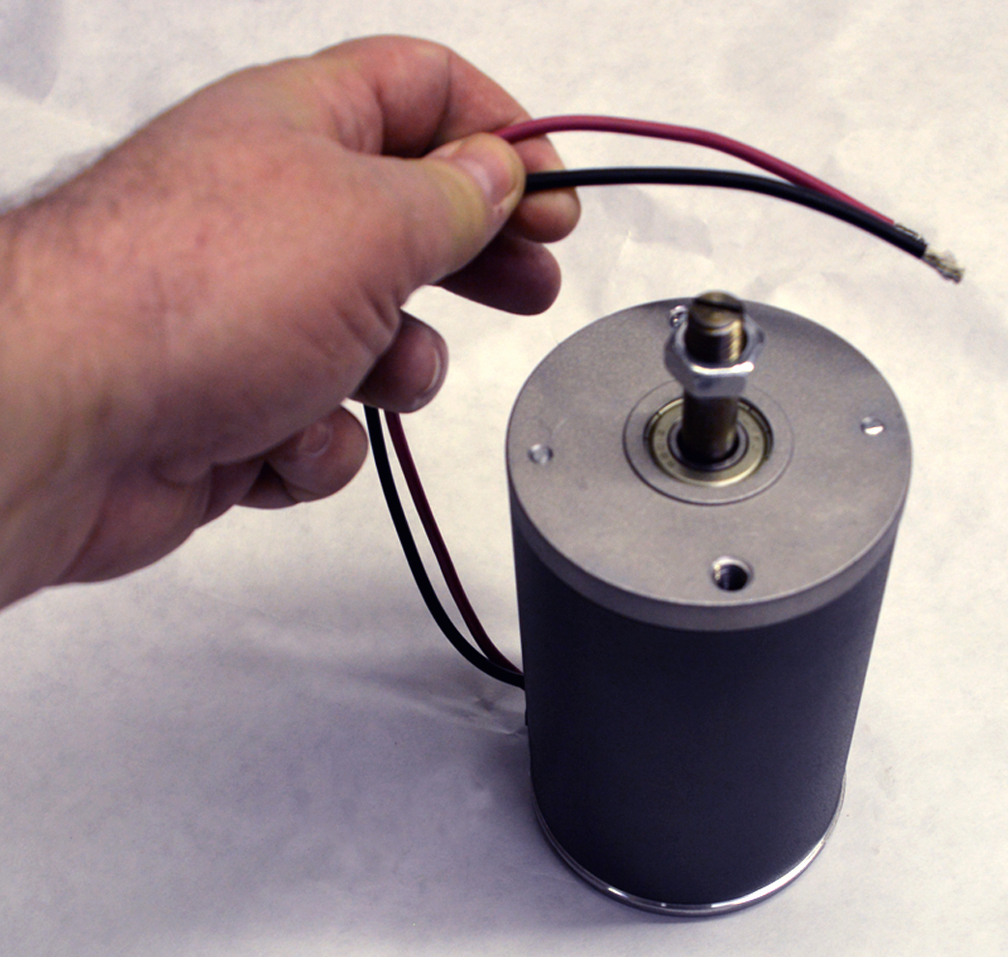

Heavy 10 AWG wire to handle the amps with water resistant rubber
A put-up and forget design! Expect decades of dependable service
Rain, ice and weather resistant electronics in sealed case (not
for under water)
Long life graphite brushes. We sell replacement brushes and bearings.
Works for both CW or CCW rotations.
Epoxy/Lam rotor efficiency = 94.6% (Brushed motors convert more
electricity into usable horsepower)
Weighs ONLY 8.5 lbs. (Almost 100 Watts Per Pound !)
Can be used as a generator, makes power when turned (Requires
100 amp blocking diode)
Brush technology is older but
they are very quick and simple to replace in the field AND
brushed motors convert more electricity into usable horsepower!
BUILD ELECTRIC CARS / INVENT ELECTRIC BOATS / DESIGN ELECTRIC
MOTORCYCLES / MINI BIKES / GO KARTS / POWERED BICYCLES
We want you to use these motors in your product designs to help
as we slowly run out of cheap fossil fuels - Electricity is the
