for both your wind and solar battery input power.
This regulator can either dump extra power
creating free hot water or heat or just cut off
extra power to keep your batteries from over
charging. This unit is a must for wind turbine

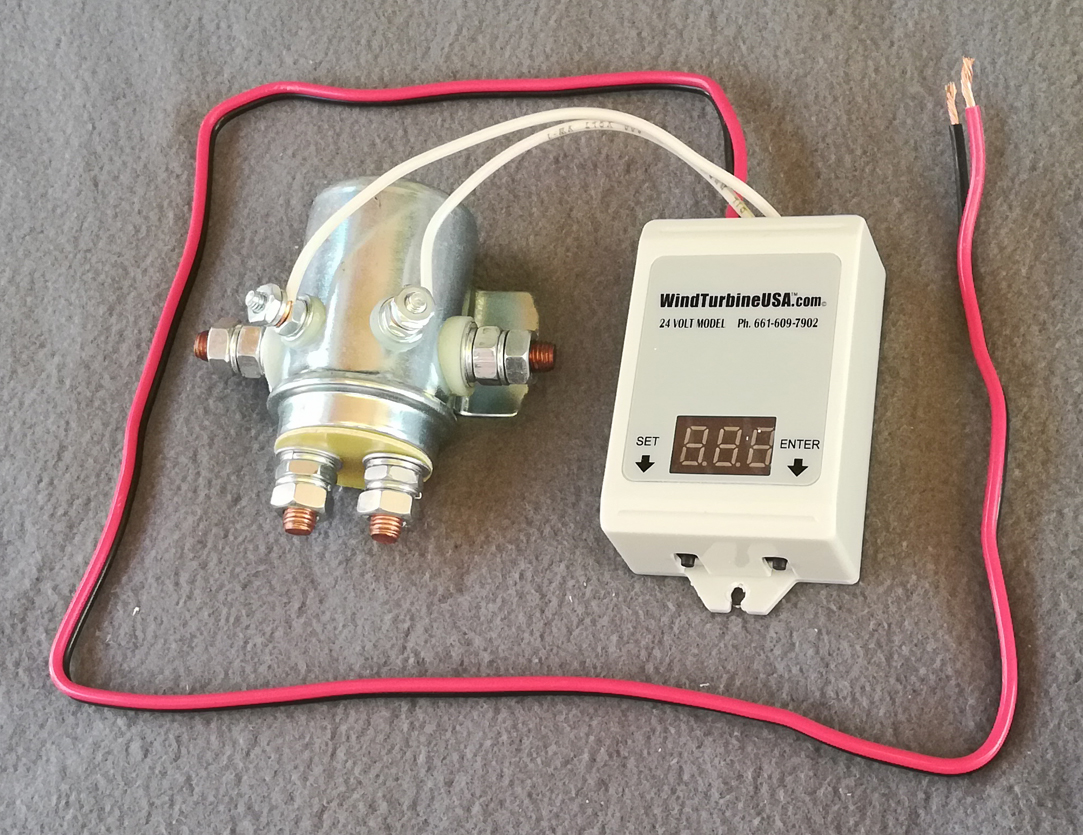

applications as it uses a mechanical solenoid
which can handle high voltage surges unlike solid
10,000 WATT Rated / 440 amp
place to put a battery overcharge
regulator is 'AT THE BATTERY'
Can be used to
control both large and even the smallest wind
& solar systems.
batteries from over charging by diverting or
controller (No need to buy a dump load resistor)
First controller that
can divert or simply disconnect
without an electrical arc occurring -
storms solidstate IGBT controllers can fry!
This unit can
control up to 10,000 Watts!
12 wind turbines
or 40 solar panels!

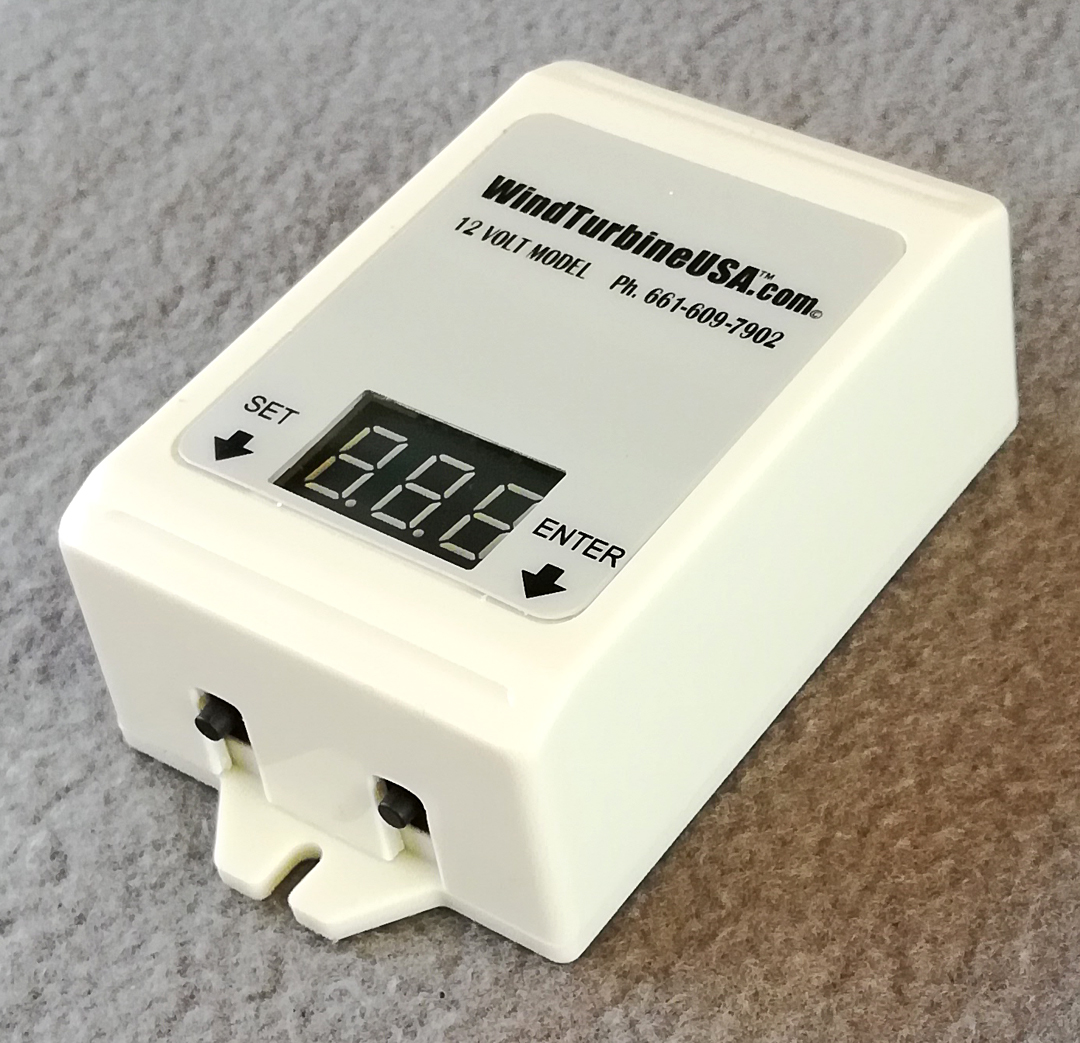

FOR 12 VOLT SYSTEMS ONLY
AMPERAGE Super heavy duty

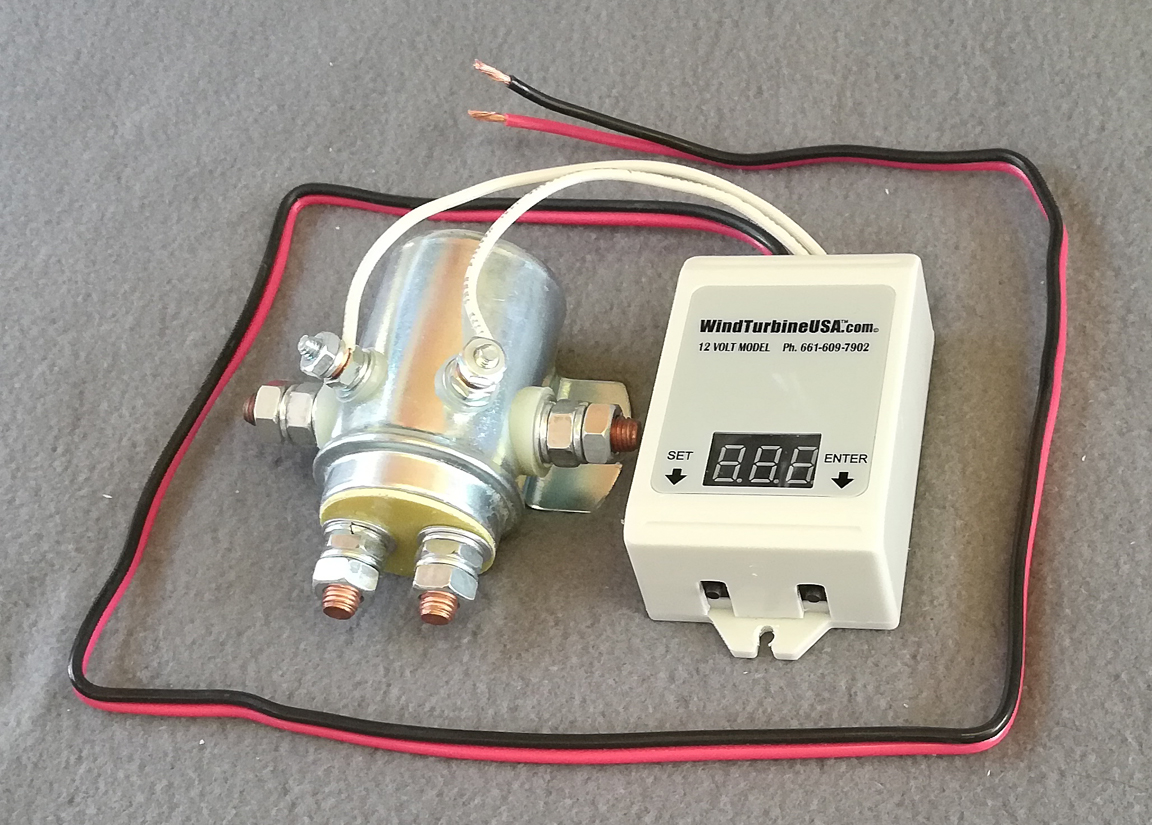

12 VOLT REGULATOR (OUR VERY

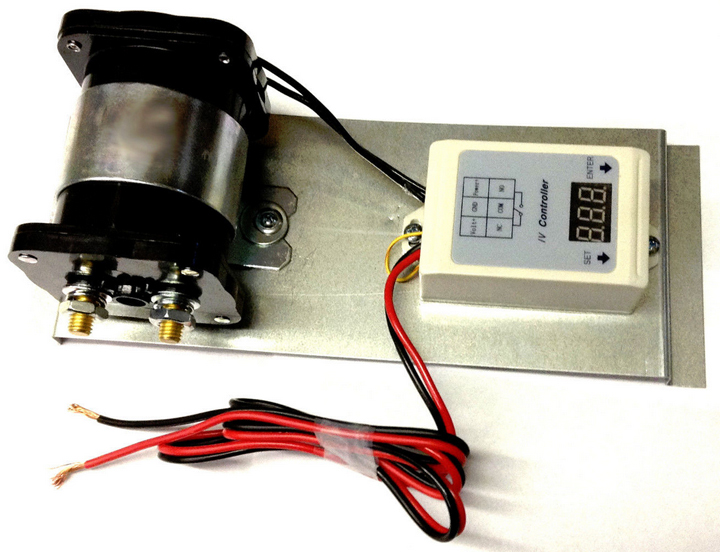

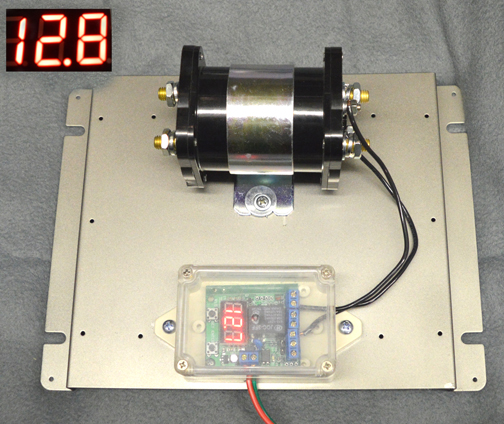

#SEA440 (ADG500) / 500 Amp 12 Volt Regulator
Assembled $139.95 plus
$22.95 S&H -
"Digital connectors can not
control the wild pulsating power outputthat
comes out of PMA's working in infinite variables of winds
In the world of wind
turbines you can only control
the battery thus preventing
it from over changing.
Used to prevent battery over
charging on / Wind - Solar - Hydro

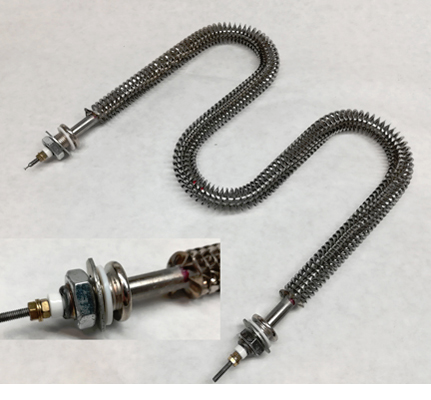

A battery regulator diverts
excess power to power some other useful device when ever your
battery is full. Use this excess power to make free
hot water or to recharge an auxiliary battery bank, so many
uses, just to many to mention!
Regulate your BATTERY instead
of your wind turbine, solar panels and many other AE devices.

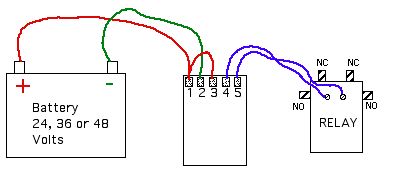

It is VERY important that the slave
sensor leads are NEVER to be exposed to the direct high
frequency voltage of the wind turbine or PMA when NOT
electrically tied down to a battery in the full circuit! The
Red and Green wires are ONLY to be placed directly on your
battery and NEVER directly to ONLY a wind turbine or PMA!
BATTERY AGE - Old batteries with dirty
or corroded terminals can cause many sensing problems for the
Clean the terminals with a wire brush
until they shine brightly! Reconnect and enjoy your new found
BATTERY GROUPING - Never mix and match
batteries in your bank!
in your battery bank must be of the same type and
size but they especially must be the same age!Having
an old, mismatched or shorted battery in the group causes
BATTERY DISCHARGING TO LOW - If your
dump load is very small batteries tend to drain deeper. The
simple solution is to use a diversion load that pulls more
Larger loads tell the controller to turn
off earlier in the load diversion load cycle leaving the
batteries topped off a little higher.
If the load exceeds 440
amps the relay contacts may
fuse (weld) together. The
result will be a drained battery.

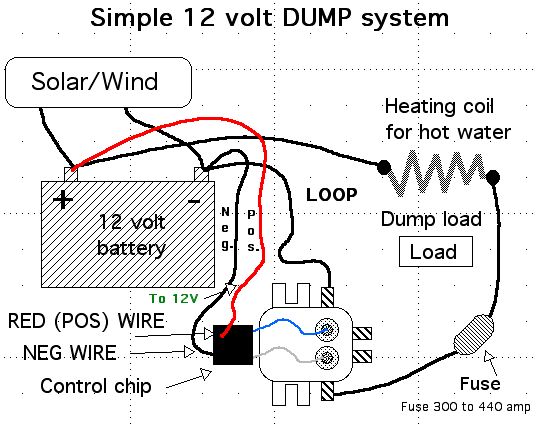

We highly recommend you install a high
amperage fuse inline with the power LOOP to prevent this.
Make sure all connections are clean and
tight before wind or solar power is put into the battery and
regulator. Make contact with the battery at all times !!!
