MANTA D.C. MOTOR'S and A.C. GENERATOR'S
Axil power when you need it.

Only 30 lbs and 10 horse power- Make incredible project vehicles

Vertical Stator Design (Magnets on BOTH sides of the stator)
Worlds most powerful motor for its weight to hp ratio!





"A Real Power House!"

10 HP MOTOR and or

8000 WATT DC GENERATOR





DC MOTOR TYPE



AC GENERATOR TYPE


WARNING ABOUT GEARING AND LUGGING!

DESIGNING KARTS, BOATS AND BIKES - CLICK!






CLICK HERE

Buy One Manta II D.C. motor and brushed generator (PMG2) - Now For $699.95 ea. + $69.90 S&H

Great for powering small vehicles and also as a generator when used with a diode.

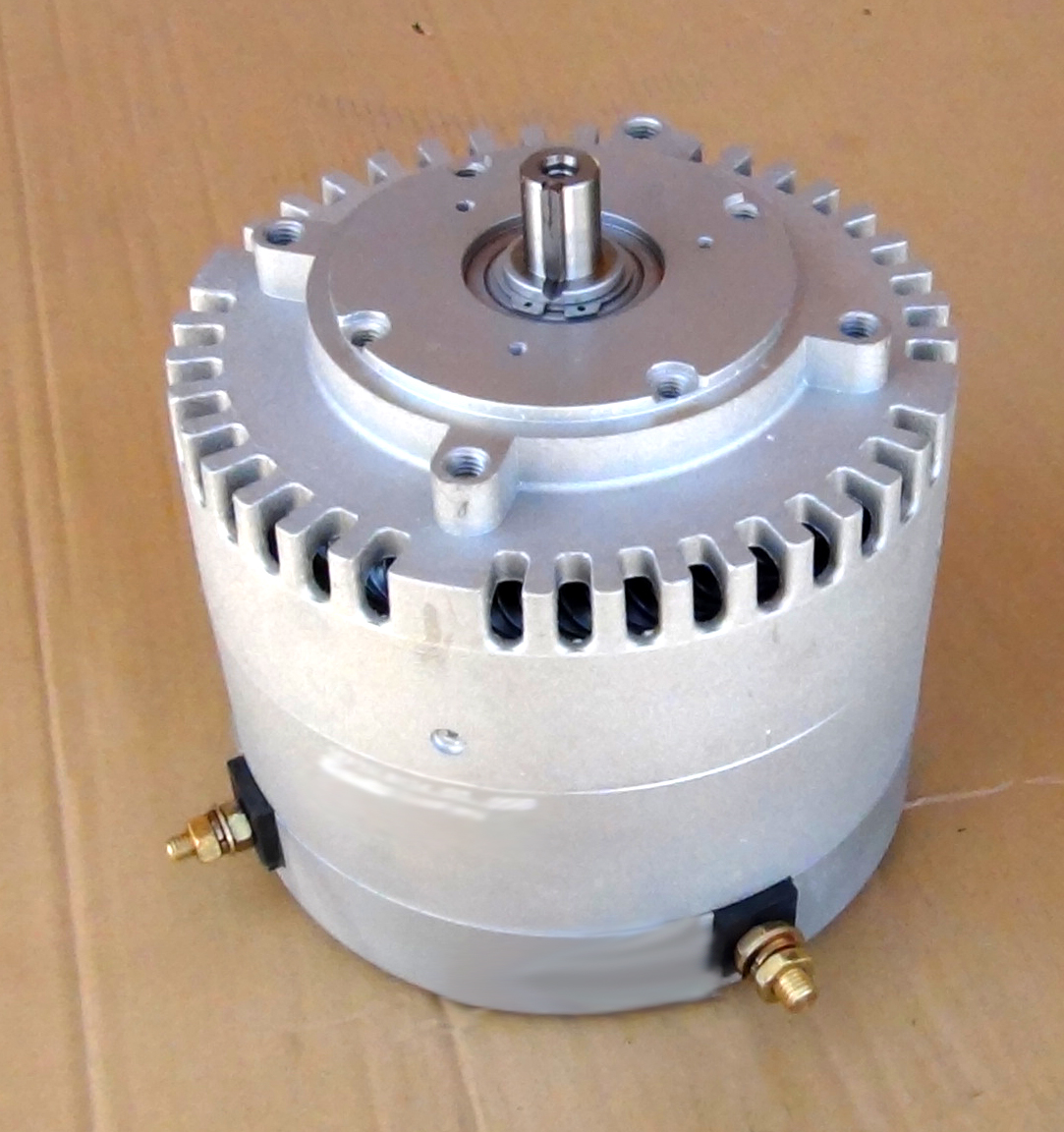

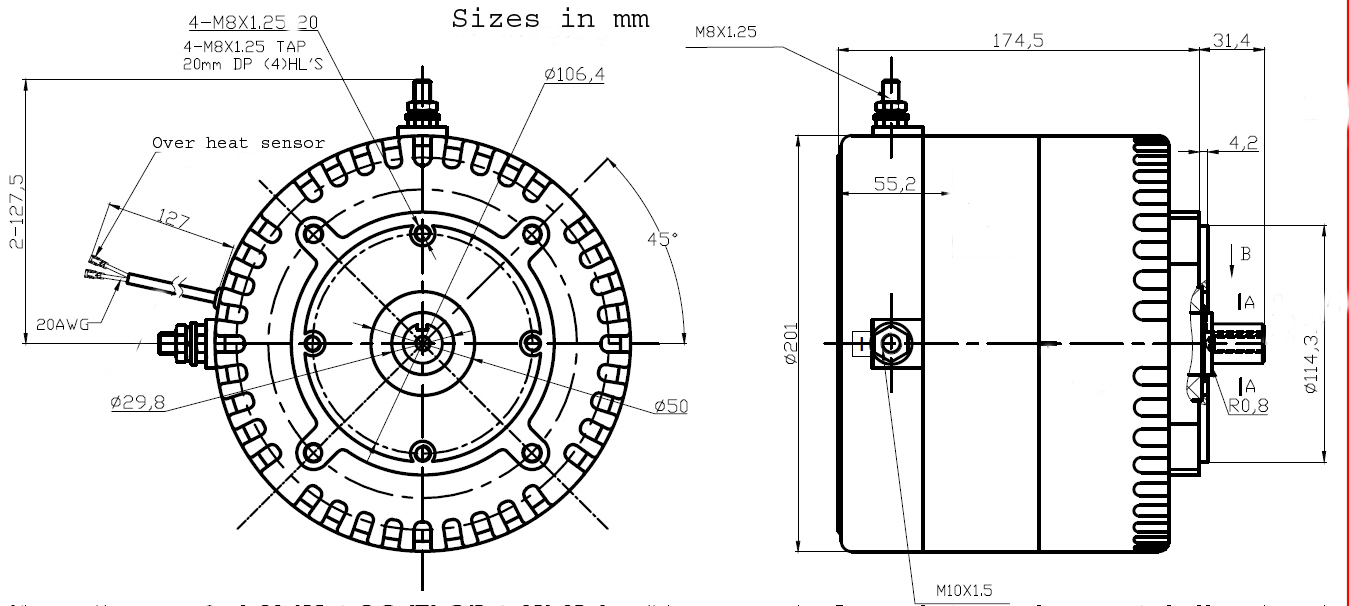

Manta 2 / D.C. Motor Specifications:

7.91o" diameter / 7.75" length
3/4" shaft with 1/8" or 3/16 or 1/4" keyway by 1" long
Torque constant: 1.14 in-lb/Amp (0.13 Nm/Amp)
12V to 48V (4550 RPM MAX )
For cooler running and longer life run only on 36 Volts for all continuous duty applications.
Can be used as a generator, makes power when turned (Requires 100 amp blocking diode)
Great for VERY low voltages at high amp loads (Perfect PMG for making hydrogen)
Perfect for building simple, cheap and dependable low voltage wind turbines.
A put-up and forget design! Expect decades of dependable service life.
Rain, ice and weather proof electronics.
Graphite brushes last up to 275,000 hours (When used as electric generator in wind power systems)
6 horsepower continuous duty at 36 volts without cooling

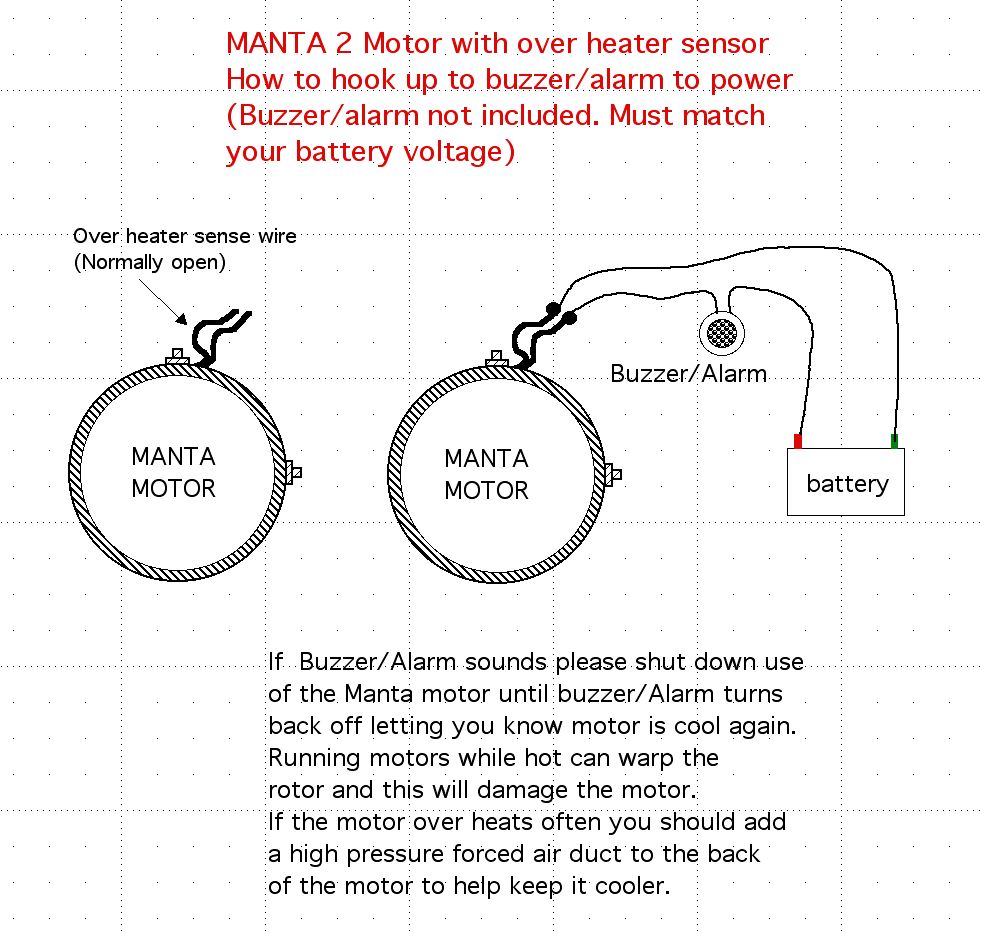

10 horsepower max at 48 volts / 60% duty max! Motor temp not to ever exceed 125F. KEEPING THE Manta 2 COOL
Works for both CW or CCW rotations (Never rev motor over 4550 RPM! Must be used under a work load at all times)
Epoxy/Lam rotor efficiency = 94% (Brushed motors convert more electricity into usable horsepower)
Weighs 39lbs. / Dimensions - 8"X 9"X 9"
SHAFT LOCK REQUIRED and SUPPORT BEARINGS RECOMMENDED


Manta 2® #PMG2
Used for wind charging 6 or 12 batteries (Used in many low voltage hydrogen generators)

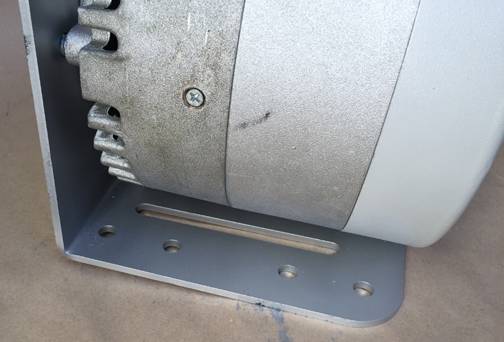

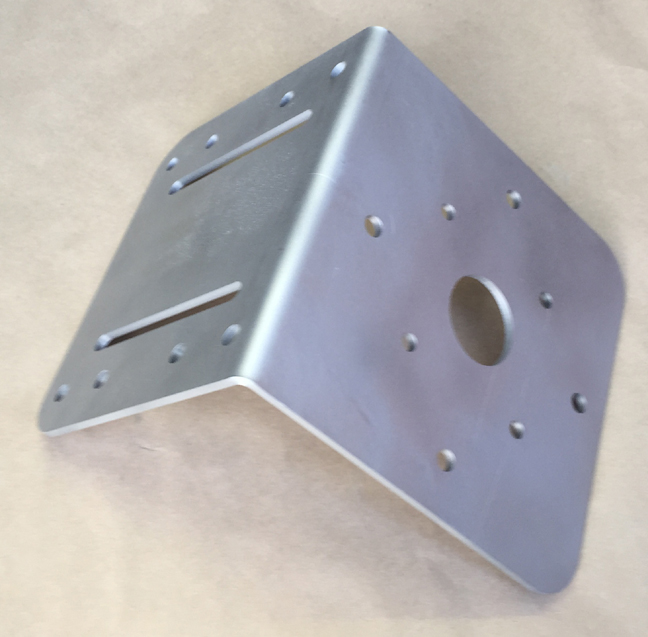

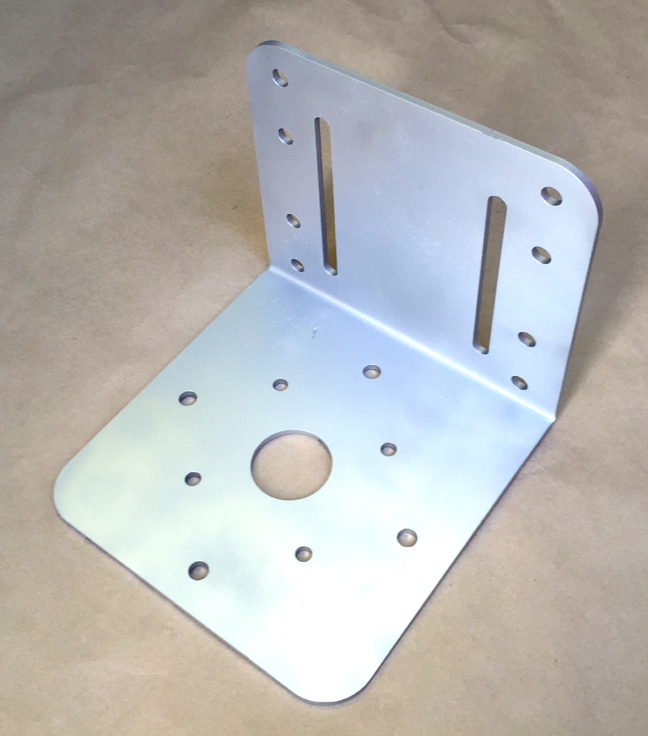

Manta motor/generator mounting bracket

$49.95 plus $23.90 S&H fees

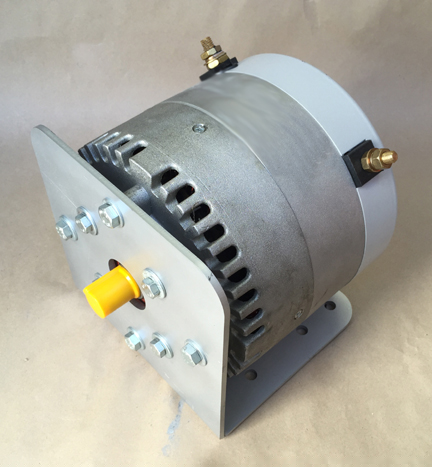

Shows how it fits manta motors and generators







Manta 3 / 3500 Watt Generator
OUR MOST POWERFUL EVER!

Buy One Manta 3 model #M3500 A.C. brushless generator
and get decades of very dependable electrical power generator.

#M-3500Now For $299.95 ea. + $79.90 S&H


3500 Watt / 200 Amp / 48 volt Electric
generator for home-power battery charging.
OUR MOST POWERFUL AXIAL PMG EVER!

48 volts approx. at 3600 to 4100 RPM / 3500 Watts continuous duty at 24/36 volts (119/150 amps peak continuous duty)
36 volts approx. at 2800 to 3300 RPM / 3500 Watts continuous duty at 24/36 volts (63/87 Amps peak continuous duty)
24 volts approx. at 2100 to 2400 RPM / 3500 Watts continuous duty at 12/24 volts (439/71 Amps peak continuous duty)

4600 RPM - 3500 Watts PEAK AT 60 VOLTS 45% duty

A.C. brushless generator
. Great for 48, 36 and 24 volt battery charging.
Dual sided coil axial brush-less generator - 3 phase for long distance power transmission.

(Requires one 300 Amp rated 3 phase bridge rectifier's run in parallel to make output into D.C. power -  Bridge rectifier's.
NOT SUPPLIED)
THIS HAS BEEN ALTERED TO BE A GENERATOR ONLY - THIS IS NOT A MOTOR!

M-3500 / Three phase A.C. Generator
  • Specifications:
  • 9.43" diameter (with cover) / 7.75" length 24MM" shaft
    3/16 or 1/4" key-way by 1" long with bare shaft (no key)
    12V to 48V (4600 RPM MAX FOR 100% DUTY) -
    A put-up and forget design!
    Neo #50 Magnets
    24MM" shaft with 3/16 or 1/4" keyway by 1" long with cog belt drive pulley
    12V to 48V (4100 RPM MAX -
    A put-up and forget design! Expect decades of dependable service life.
    Rain, ice and weather proof electronics.
    Comes with cog drive but can be removed for pulley or chain drive.
    3500 Watts continuous duty at 48 volts at 3600 to 4100 RPM
    3000 Watts continuous duty at 36 volts at 2800 to 3300 RPM
    2000 Watts continuous duty at 24 volts at 2100 to 2400 RPM
    1000 Watts continuous duty at 12 volts at 1400 to 1900 RPM
    Works for both CW or CCW rotations
    Epoxy/Lam rotor efficiency = 94% (Brushed motors convert more electricity into usable horsepower)
    Weighs 33 lbs. / Box Dimensions - 12"X 12"X 12"

    (THIS MODEL CAN NOT BE USED AS A MOTOR! For AC power generation only!)
  • THIS HAS BEEN ALTERED TO BE A GENERATOR ONLY - THIS IS NOT A MOTOR!
  • Expect decades of dependable service life.
  • Rain, ice and weather proof electronics.
  • Works for both CW or CCW rotations -
    Epoxy/Lam/wire rotor efficiency = 95% - 49 lbs.
  • Dimensions - 16"X 10"X 12"
  • THIS MODEL CAN-NOT BE USED AS A MOTOR! For AC power power generation only!
    Manta 3 Generator page ------------------>



    OTHER MOTOR CONTROLLERS
    http://curtisinstruments.com
    http://www.alltraxinc.com
    http://kellycontroller.com/
    http://www.dmcde.de/
    http://www.sevcon.com/products.aspx





    The "Manta 2"® #PMG308

    New and test run for 1 hour







    http://youtu.be/hu58HYA2jRE


    SNOW BLOWER



    https://youtu.be/T3a4MBxkrPM




    "A Real Power House!"





    10 HP MOTOR and or

    8000 WATT DC GENERATOR



    WARNING ABOUT GEARING AND LUGGING!

    DESIGNING KARTS, BOATS AND BIKES - CLICK!





    Fits on most common Etek bolt patterns and mounts

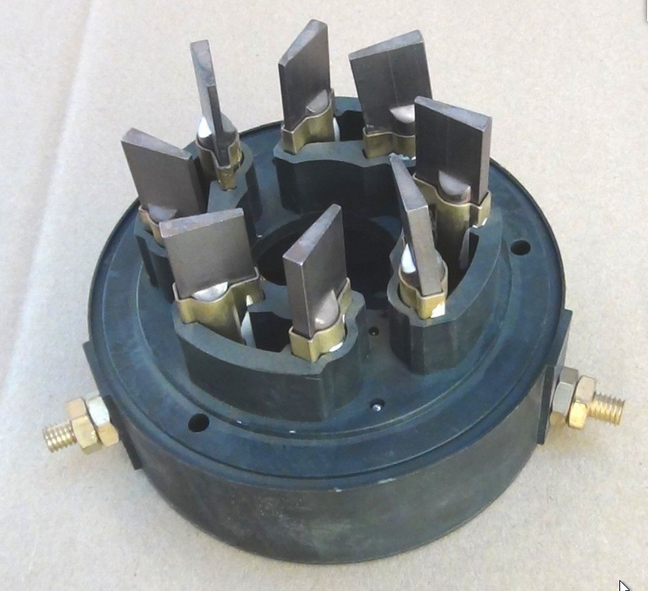

    New Lithium/Graphite brushes can last for decades and are very

    electrically efficient converting most of your batteries power into

    usable horsepower unlike motors requiring solidstate controllers.



    LINK HERE TO SEE OTHER Manta 2 IDEAS AND CONVERSIONS






    How to figure torque - http://www.engineeringtoolbox.com/electrical-motors-hp-torque-rpm-d_1503.html






    NO LOAD CHART (Amps/Watts increase as load increases)



    How to figure torque



    For old browsers link here - http://www.youtube.com/watch?v=1FgmXnrAOA8


    The Dual Bicycle Project-

    For old browsers link here - http://www.youtube.com/watch?v=tYZ6cpWdTGA

    Fast and silent

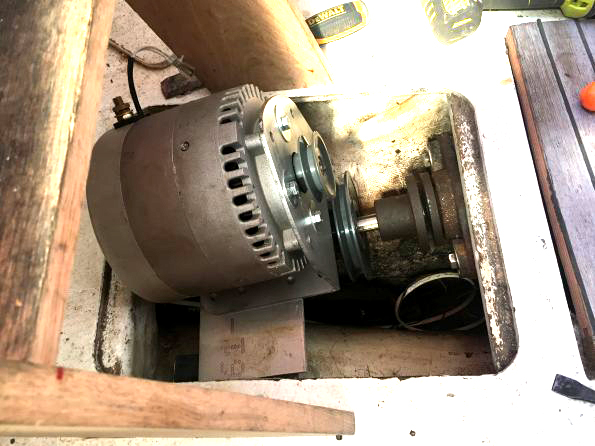

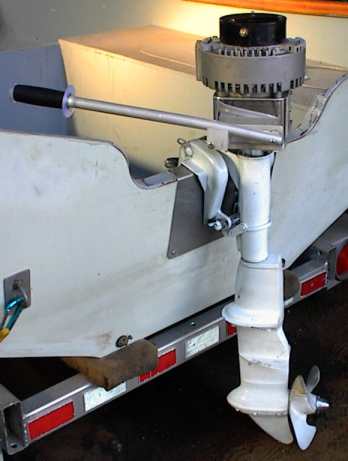

    Electric boat conversion (video from unknown youtube source)

    WARNING: this motor is NOT an ordinary motor, and should be handled with GREAT care.
    Do not allow motor to get over heated!
    It is very capable of serious power and should always be completely secured before applying any power to it.

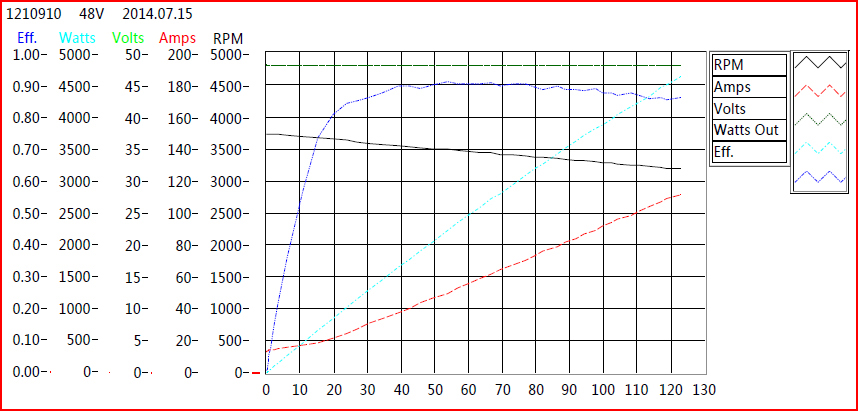

    Power curve for both motor and generator usages
    (Note: When used as a generator a MIN. 100 Amp blocking diode is needed!)

    Ohms law calculator

    The #PMG226 is a Hydrogen Appliances Exclusive! Only available here.

    (Ratings are based at time of high load)
    (This PMG is recommended for experienced AE designers only!)

    The Manta 2 includes a 90 day repair only warranty.





    WARNING ABOUT GEARING AND LUGGING!
    DESIGNING KARTS, BOATS AND BIKES - CLICK!


    PRODUCT IDEAS

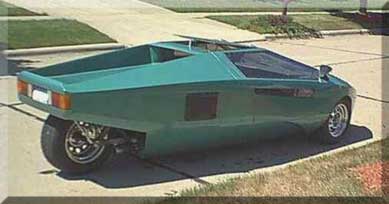

    BUILD ELECTRIC CARS / INVENT ELECTRIC BOATS / DESIGN ELECTRIC MOTORCYCLES
    We want you to use these motors in your product designs to help mankind as we slowly run out of cheap fossil fuels












    For big cars one manta is OK for slow flat-land driving but for hills you need at least 4 Manta's

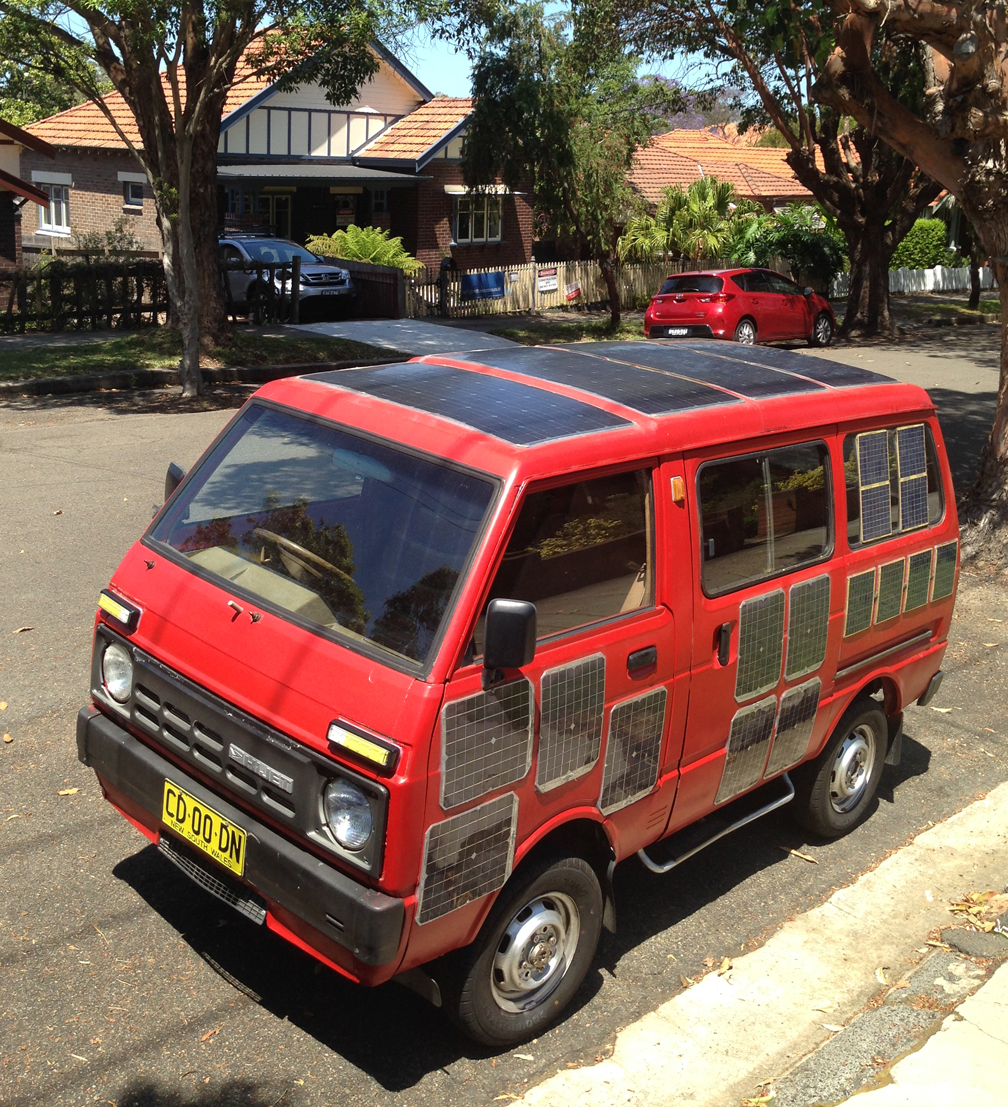

    MANTA VAN



    LINK HERE TO SEE OTHER

    Manta 2 IDEAS AND CONVERSIONS




    BE SURE TO USE LARGE GAUGE "00" WIRES ESPECIALLY ON 12 VOLT ENGINE DRIVEN PMG's





    PMG's produce unregulated D.C. voltage and may require a charge controller for smaller batteries banks or non-grid connected applications.


    "A Real Power House for electric power generation from wind!" (gearing still recommended for higher voltages and efficiencies)

    To give you engineering types some idea of how unusually hyper the #PMG226 is, try this test;
    Short out the power leads of the #PMG226 through an amp meter in line and try to turn the shaft by hand. While under a full load the shaft seems almost seized BUT during your fatiguing attempt to turn the shaft you will have produced well over a 35 amp reading on the amp meter!!!
    You say 35 amps just by turning the shaft by hand? YES! (This test may require vise-grip pliers for persons with weak grips)

    That's 35 amps at well under 1 RPS - WOW! Not bad for a direct drive unit!

    At last, a permanent magnet generator that does not require a gear box!
    Produce power at direct coupled wind turbine shaft speeds as low as 60 RPM!
    Designed to be directly mounted on 8 to 12 foot in diameter high speed wind turbine propellers.




    WARNING: this motor is NOT an ordinary motor, and should be handled with GREAT care.
    It is very capable of serious power and should always be completely secured before applying any power to it!!

    The Manta 2 includes a 90 day repair only warranty. Over heated motors will not be warranted. Be sure to provide adequate ventilation and do not run them to hot!





    Questions??? For Fast Email Service Email Us Please.
    CALL US NOW

    For FAST Technical Support Please Email Us Now!
    How to place a domestic order without using the Shopping cart For Canada, Alaska and Hawaii additional shipping rates
    and CHECK OUT



    NO PAPER company policy. We have no written literature.
    Over 175,000,000 tons of paper and other wood products are dumped into landfills annually world over.
    We offer only non-polluting electronically generated information that is served here on this web site.
